4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller

Maximum data rate : 6.75Gbps

Product Name : 4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller

Wavelength : Single-mode 1310nm

Payment Terms : Western Union,T/T,/Paypal

The warranty : 1 year

Connector : Female HDMI type A

Operating temperature : Operating: -5℃ ~ +70℃

Interface : SFP model – LC connector

Model Number : 4K HDMI Fiber Optic Extender

Standards : HDMI 1.4

Maximum pixel clock : 225MHz

Brand Name : DF/OEM/Nuetral

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Humidity : Operating: 5% ~ 90%

Dimension : 94.5*73*26mm

Contact Now

4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
The HDMI Fiber Optic Extender provides long-distance transmission of HDMI and 3D signals over a single fiber optic cable. It supports high resolution up to 4K×2K and features EDID copy/pass-thru functionality. Ideal for applications requiring reliable long-distance transmission of high-resolution video with excellent stability and security.
4K HDMI Fiber Optic Extender Features
  • Transmits HDMI video signals up to 2km-10km over a pair of fiber optic cables
  • Supports video resolution up to 3860×2160@30Hz and 3D signals
  • EDID copy/pass-thru function for compatibility with various display devices
  • Compliant with HDMI 1.4 standard
  • High compatibility with automatic source and display device matching
  • Built-in automatic adjustment system for smooth, clear, and stable images
  • Built-in ESD protection system
  • Simple plug-and-play installation

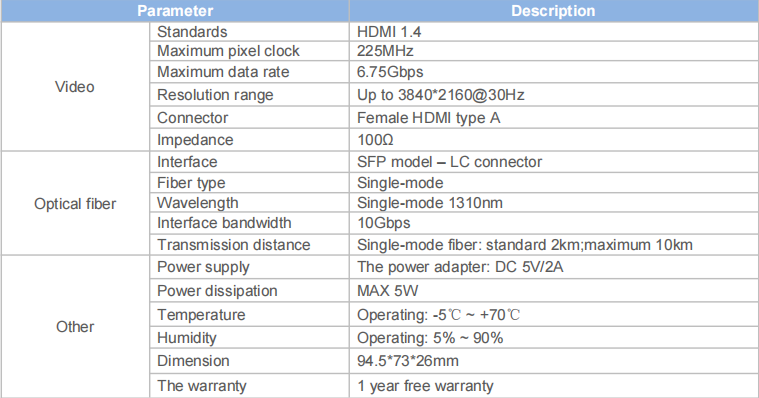

4K HDMI Fiber Optic Extender Specifications

Parameter

Description

Video

Standards

HDMI 1.4

Maximum pixel clock

225MHz

Maximum data rate

6.75Gbps

Resolution range

Up to 3840*2160@30Hz

Connector

Female HDMI type A

Impedance

100Ω

Optic Fiber

Interface

SFP model – LC connector

Fiber type

Single-mode

Optical fiber Wavelength

Single-mode 1310nm

Interface bandwidth

10Gbps

Transmission distance

Single-mode fiber: standard 2km;maximum 10km

Other

Power supply

The power adapter: DC 5V/2A

Power dissipation

MAX 5W

Temperature Operating

-5℃ ~ +70℃

Humidity Operating

5% ~ 90%

Dimension

94.5*73*26mm

The warranty

1 year free warranty
Panel
4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
4K HDMI Fiber Optic Extender Images
4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller 4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
Installation Guide
  1. Connect the provided DC power supplies to the power socket of the transmitter and receiver
  2. Connect an HDMI cable between the HDMI input port of transmitter and HDMI output port of video source
  3. Connect the HDMI output port of receiver to the display device with HDMI cable
  4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable
4K HDMI Fiber Optic Extender Diagram
4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
Why Choose TAKFLY?
  • Over 26+ years of manufacturing experience in fiber optic products
  • More than 450 assembly workers with 3+ years of experience
  • 10+ R&D Engineers dedicated to product development
  • 16 sets of Germany imported injection machines and 16 production lines
  • 30+ sets of testing equipment including OTDR, 3D, VFL, IL&RL test instruments
  • OEM branding accepted
  • Regular participation in international exhibitions including OFC, ECOC, and CommunicAsia
Quality Control
  • Raw material inspection before production
  • Full inspection after every production process
  • Comprehensive quality checks during production
  • Final product inspection before packaging
  • Pre-shipment spot checks
Delivery Information
Order Type Delivery Time
Samples 1-3 working days
Mass Production 3-7 working days
Packaging Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We will provide charges upon request.
Q4: Can I visit you?
A4: Yes, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise, please provide photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
Q6: What are your packaging terms?
A6: Standard packaging includes blister boxes and cartons. Custom packaging is available upon customer request.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture based on your samples or technical drawings.
